Topside Alignment Placement (TAP) Process

March 9, 2015

[section background_repeat=”repeat” background_position=”center top” background_attachment=”static” background_scroll=”none”]

March 9, 2015 – Universal Instruments’ proprietary Topside Alignment Placement (TAP) process aligns placement based on top features, enabling high accuracy placement for a wide range of applications.

In CPV applications, TAP option maximizes efficiency and power density and automates assembly of large solar panels. In embedded applications, TAP aligns die top features for high density interconnect on large substrate.

In Automotive applications, accurate LED alignment eliminates the need for a secondary lens, thus reducing component count and overall cost of lamp.

tap6_cotap5

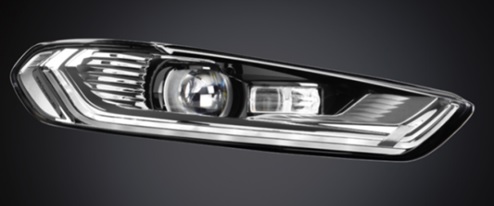

Automotive-Car Headlamp Assembly Options

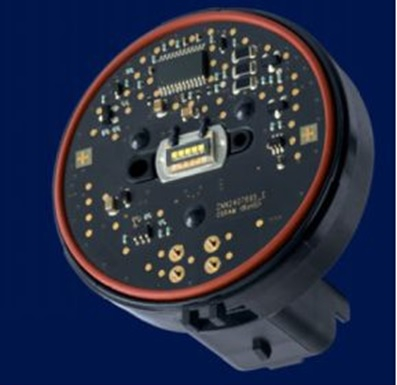

  • Automotive board level
    tap4_co

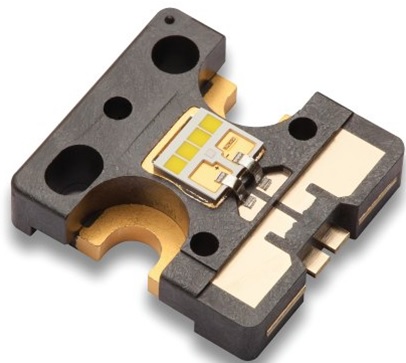

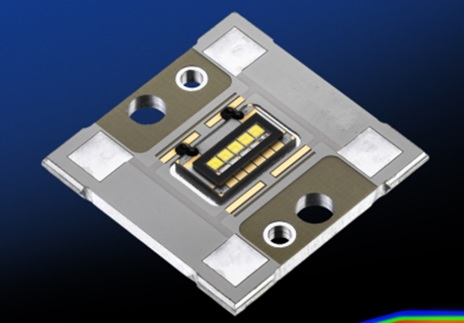

  • Module level
    tap1_co
    tap2

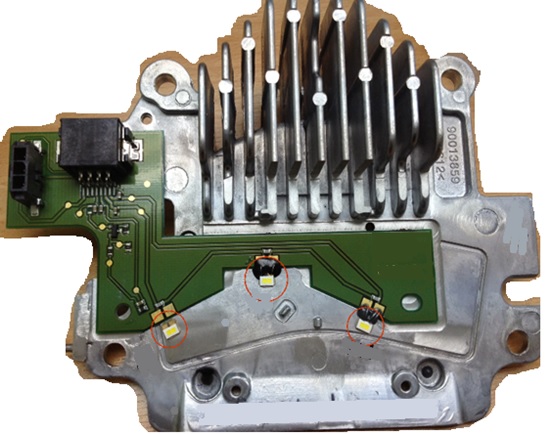

  • Custom Housings
    tap3

Topside Alignment Place (TAP) is a process in which the component bottom outline and the active top features are inspected simultaneously by upper and downward looking cameras respectively. The inspection establishes a relationship between the component bottom outline versus the component top patterns. Following top inspection by the downward looking camera (PEC), the component is picked and moved over an upward looking camera (ULC). The upward camera defines the relationship of the component outline to the spindle for placement. The relationship offset from the TAP process is added to the upward camera correction offset for final placement. This process also resolves the issue of component movement between inspect and pick.

The process:

  1. Machine starts by feeding the component to feeder location
  2. The PEC camera locates the programmed topside features on the component. The topside feature referred as the artwork.
  3. The PEC camera locates a reference feature with respect to the artwork
  4. The machine then calculates and stores the artwork‐to‐reference feature offset.
  5. The head picks and scans them over the upward looking camera (ULC). Using ULC, it recognizes the same reference feature use by PEC.
  6. The artwork‐to‐reference feature offset is taken into account in the determination of the final placement location.
  7. The components are then placed on the substrate

Example:

tap7

The Topside Alignment Place (TAP) can be added to any Fuzion platform; it’s an integrated solution that supports placement of active and passive components on the a single platform.

tap8_co

For more information about Universal Instruments’ Advanced Packaging solutions, visit https://www.uic.com/solutions/markets/advanced-packaging/ or contact Mike Yingling (+1 607-768-4379/yingling@uic.com). For more information on Fuzion platform, visit https://www.uic.com/solutions/surface-mount/fuzion-platform/ or contact Paul Shih (+1 607-759-8283/ paul.shih@uic.com).
